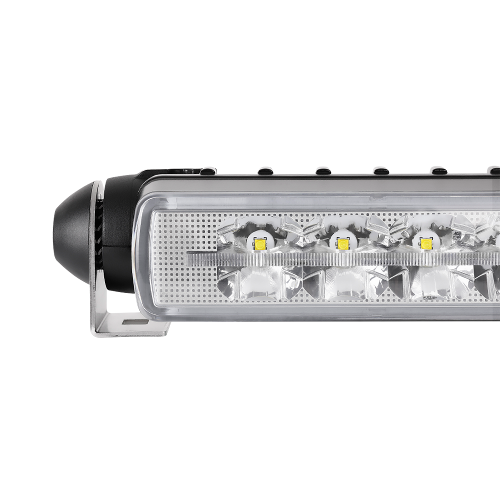

CDP1F High-Performance LED Work Lamp – 12V–24V DC
Designed for demanding environments, the CDP1F LED work lamp is ideal for service vehicles, trailers, plant machinery, and off-road applications. With powerful light output and robust construction, it provides focused illumination for working areas near vehicles, tractors, slow-moving machines, and any location where the appropriate voltage is available.
Key Features:
-
Exceptional Light Output:
-
LED module luminous flux: 14,000 lm / 8,000 lm
-
Lamp luminous flux: 11,200 lm / 6,400 lm
-
-
High Power Consumption:
-
Max power: 160W, 76W, 1.6W
-
Ensure good airflow to prevent temporary reduction of power due to heat buildup
-
-
Durable Design:
-
IP67 and IP69K rated – fully protected against dust, water ingress, and high-pressure cleaning
-
Operating temperature: –40°C to +80°C
-
Compact housing: 537 x 47 x 62 mm
-
Technical Specifications:
-
Nominal Voltage: 12V–24V DC
-
Permissible Voltage Range: 10.5V–30V DC
-
Light Source: 18 x LEDs
-
Colour Temperature: 5000K–7000K
-
Beam Pattern: 5° narrow beam for focused illumination
-
Housing Material: Aluminium
-
Lens Material: High-impact plastic
-
Built-in Connectors: Optional connector installation on request
Built-in Protections:
-
Reverse polarity protection
-
Overheating protection
Regulatory Compliance:
Complies with EMC Directive 2004/108/EC — does not emit electromagnetic interference and is resistant to its effects.
Correct polarity must be observed during installation.
